Bottom Seals
Advanced Plastic Garage Door Bottom Seal Products
Designed To Fit All Standard Styles And Sizes.
Custom Plastic Extrusion Since 1981.
Advanced Plastic Garage Door Bottom Seals
The Original Universal One-Piece Adjustable Bottom Seal
Made in the USA, sold worldwide, Advanced Plastic weather seals are often copied but never duplicated. As the originators of the award-winning, patented UNI-100 universal one-piece adjustable bottom seal, we have set the standard — and no other garage door bottom seals come close.
Our dual durometer PVC bottom seals are the finest and most durable garage door bottom seals available. Designed to perform in extreme heat and freezing conditions, our garage door bottom seals are suitable for use in all climates.
Truly universal, commercial or residential, all Advanced Plastic bottom seals work with virtually every overhead garage door application including: adjustable, cap style, bulb, carriage, ship-lap, tongue and groove, open face, rolling steel and mini warehouse doors.
Start by browsing the selection of bottom seals below or contact us at 847-674-2070 for assistance.
UNI-100
UNI-SIZE BOTTOM SEAL
UNI-SIZE BOTTOM SEAL
8’2″, 9’2″, 10’2″, 12’2″, 14’2″, 16’2″, 18’2″
Black
15 pcs per box
Fits 3/4″ through 2″ thick doors
Click here to view the installation video for assistance
*STOCKED LENGTHS ARE SUBJECT TO CHANGE WITHOUT NOTICE
UNI-100OF
UNI-SIZE BOTTOM SEAL OPEN FACE
UNI-SIZE BOTTOM SEAL OPEN FACE
16’2″, 18’2″
Black
15 pcs per box
Fits 3/4″ through 2″ thick door
Click here to view the installation video for assistance
*STOCKED LENGTHS ARE SUBJECT TO CHANGE WITHOUT NOTICE
UNI-300OF
UNI-SIZE BOTTOM SEAL OPEN FACE
UNI-SIZE BOTTOM SEAL OPEN FACE
16’2″, 18’2″
Black
15 pcs per box
Fits 2″ through 3-1/2″ thick doors
Click here to view the installation video for assistance
*STOCKED LENGTHS ARE SUBJECT TO CHANGE WITHOUT NOTICE
CP-05S
1-5/16″ BOTTOM SEAL
1-5/16″ BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
12 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-05
1-3/8″ BOTTOM SEAL
1-3/8″ BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
12 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-06
1-3/4″ BOTTOM SEAL
1-3/4″ BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
12 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-07
2″ LONG LEG BOTTOM SEAL
2″ LONG LEG BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
6 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-07OF
2″ OPEN FACE LONG LEG BOTTOM SEAL
2″ OPEN FACE LONG LEG BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′,18′
Black
10 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-10
2″ BOTTOM SEAL
2″ BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
8 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-125
1-1/4″ BOTTOM SEAL- SPECIAL ORDER
1-1/4″ BOTTOM SEAL- SPECIAL ORDER
SPECIAL ORDER
Black
15 pcs per box
SPECIAL ORDER: Requires minimum purchase with extended lead time
CP-138OFB
1-3/8″ OPEN FACE BUBBLE BOTTOM SEAL
1-3/8″ OPEN FACE BUBBLE BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
15 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-134OFB
1-3/4″ OPEN FACE BUBBLE BOTTOM SEAL
1-3/4″ OPEN FACE BUBBLE BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′,18′
Black
12 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-150
1-1/2″ SHIP LAP BOTTOM SEAL
1-1/2″ SHIP LAP BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
12 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-158
1-5/8″ BOTTOM SEAL
1-5/8″ BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
12 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
CP-275OF
2-3/4″ OPEN FACE BOTTOM SEAL- SPECIAL ORDER
2-3/4″ OPEN FACE BOTTOM SEAL- SPECIAL ORDER
SPECIAL ORDER
Black
10 pcs per box
SPECIAL ORDER: Requires minimum purchase with extended lead time
CP-300
3″ BOTTOM SEAL
3″ BOTTOM SEAL
8′, 9′, 10′, 12′, 14, 16′, 18′
Black
6 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
AR-138
1-3/8″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
1-3/8″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
8′, 9′, 10′,12′,14′,16′, 18′
Black
8 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
5/16″ T-slot.
AR-175
1-3/4″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
1-3/4″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
8′, 9′, 10′,12′,14′,16′, 18′
Black
8 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
5/16″ T-slot.
AR-02
2″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
2″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
6 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
5/16″ T-slot.
AR-03
3″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
3″ DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
8′, 9′, 10′, 12′, 14′,16′,18′
Black
4 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
5/16″ T-slot.
ARL-138
1-3/8″, 3″ LONG LEG DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
1-3/8″ LONG LEG DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
8’2″, 10’2″, 16’2″, 18’2″
Black
6 pcs per box
5/16″ T slot
ARL-200
2″, 3″ LONG LEG DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
2″ LONG LEG DOUBLE ASTRAGAL BOTTOM SEAL RETAINER
8’2″, 10’2″, 16’2″, 18’2″
Black
4 pcs per box
5/16″ T slot

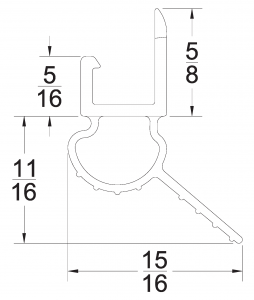

SNP-001
SNAP-ON MINI WAREHOUSE BOTTOM SEAL
SNAP-ON MINI WAREHOUSE BOTTOM SEAL
4′, 9′
Gray
20 pcs per box
Replaces Wayne-Dalton / DSI model DS-75 bottom seal.
Snaps onto bottom angle.
SL-08
2″ SHIPLAP BOTTOM SEAL
2″ SHIPLAP BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
6 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
SL-138
1-3/8″ SHIPLAP BOTTOM SEAL – SPECIAL ORDER
1-3/8″ SHIPLAP BOTTOM SEAL – SPECIAL ORDER
SPECIAL ORDER
Black
8 pcs per box
SPECIAL ORDER: Requires minimum purchase with extended lead time
SL-134
1-3/4″ SHIPLAP BOTTOM SEAL
1-3/4″ SHIPLAP BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
8 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.

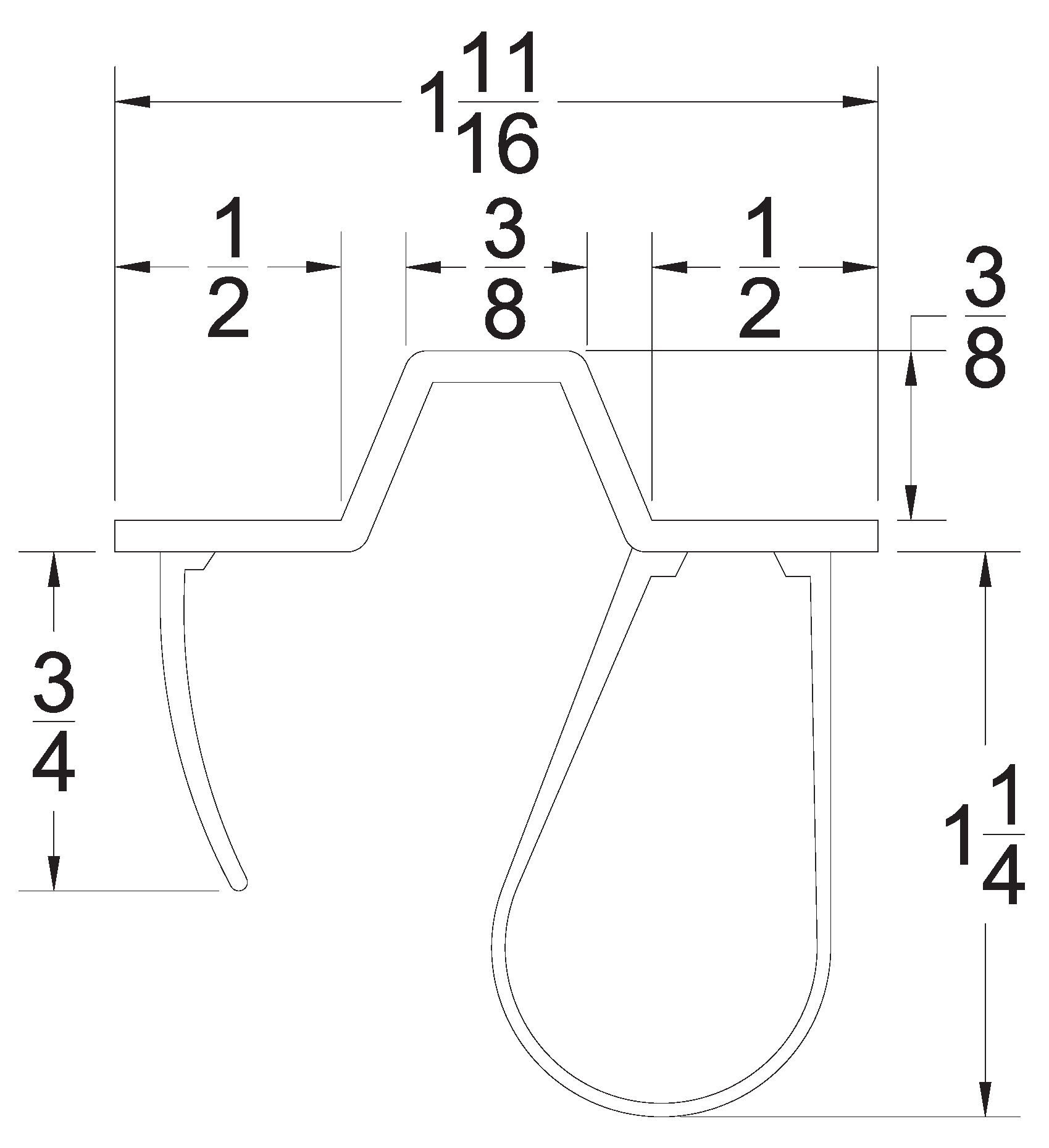

TG-200
2″ TONGUE & GROOVE BOTTOM SEAL
2″ TONGUE & GROOVE BOTTOM SEAL
8′, 9′, 10′, 12′, 14′, 16′, 18′
Black
15 pcs per box
Call about additional lengths.
2″ add-on for overlap may be available.
WDA-138
1-3/8″ WOOD DOOR ASTRAGAL
1-3/8″ WOOD DOOR ASTRAGAL
100′ per roll
Black
(1) roll per box
Flexible PVC
Not soft sponge rubber type
WDA-175
1-3/4″ WOOD DOOR ASTRAGAL
1-3/4″ WOOD DOOR ASTRAGAL
100′ per roll
Black
(1) roll per box
Flexible PVC
Not soft sponge rubber type
WDA NAILS
1″ RING SHANK X 15/16″ SQUARE HEAD GALVANIZED
1″ RING SHANK X 15/16″ SQUARE HEAD GALVANIZED
1″
Galvanized
2 lbs per box
Approx. 130 pcs per box
